UL-tech CCTV Security System 4CH DVR 4 Cameras 1TB Hard Drive
GST included. Delivery charged separately.
SKU: CCTV-4C-4B-BK-T
Out of stock
Need a delivery quote? Contact us
Need a delivery quote? Contact us
If no rate is available for your postcode, please contact us for a delivery price. Enter your postcode and suburb below to prepare your enquiry.
Delivery charges are confirmed at checkout.
Product details
Motion detection of up to 192 areas. Infrared night vision within a 20m radius. Massive 1TB HDD for up to two years of recording. A camera resolution of 1080P HD for live and recorded video that is supremely better than the usual 720P used in most DIY home security systems. The UL-Tech CCTV 1080P 4-channel CCTV Security Camera is simply one of the best home surveillance systems that you can get in the market today.
Utilizing the latest security monitoring technology, our weatherproof CCTV system is designed for both indoor and outdoor use and features record, playback and search modes. The high resolution makes it easy to identify facial features, license plates and clothing patterns for total convenience in the event of any home invasion or break-in. With its huge hard disk storage, the System enables you to review your recordings even from quite a while back. You'll be glad to know too that your data will be also be protected from any power outage.
The CCTV System uses Wi-Fi and supports P2P technology for effortless link to the internet, and the 5-in-1 DVR has video outputs via VGA and HDMI. Better still, you can access the System remotely through your smartphone or mobile device to view, capture and record with the XMEye app and an instant email will be sent to your account if any unauthorized motion is detected. You can also customize the motion detection so that the camera will only be activated when motion is detected.
So come your next vacation or anytime that you're not home, it's good to know that the UL-Tech 1080P CCTV Security Camera is your all-seeing eye on your property every single moment of the day and night.
Features:
1080P HD
4 Channel 1080N 5-in-1 DVR
Supports AHD, TVI, CVI, CVBS and IP camera
Support P2P technology
High resolution cameras with Built-in IR-cut
Remote access
View on phone or computer by logging in XMEye app
Customizable motion detection
Instant E-mail alarm
HDMI and VGA outputs
IP66 all-weather design
Indoor and outdoor use
Support USB backup and storage
Data protection when power outage
Support 4 channel simultaneous live viewing via smart phone
Support Capture and Record in your smart phone
Support Cloud System for Remote Access/Support HDMI Output
Easy to install
Bonus RRP$195 1TB hard drive, USB mouse
Specifications: Video:
Codec: H.264
Monitor quality: VGA, HDMI:HD
Preview ability: 4*1080N
Encode ability: 4*1080N@12fps
Decode ability: 4*1080N@12fps
Multi-mode input: analog: 4*1080N; 4*AHD-M; 4*AHD-L
Hybrid: 4*1080N (analog) + 4*960P (network)
Network only: 4*720P; 4*1080P; 8*720P;8*1080P;1*1080P
Motion detection: Each screen can be set to 192 (16*12) detection areas; multi-level security sensitivity can be set (limited local channel)
Record and playback:
Record mode: Manual > Alarm > Motion detection > Timing Local playback: 8ch (local input mode) Seatrch mode: Search by time, calender, event, channel
External inferface:
Video input: 8ch BNC
Video output: 1ch VHA, 1ch HDMI
Loop vout: N/A
Audio I/O: 0/0
Alarm I/O: 0/0
Network interface: RJ45 10M/100M self-adaptation
PTZ control: 1*RS485, support kinds of PTZ protocols
USB: 2* USB 2.0 ports
HDD: 1*SATA ports (Max 6TB/per)
Storage and backup
Video storage: HDD, network
Backup mode: Network, USB hard disk, USB burner, SATA burner
General:
Power supply: 12V/2A
Camera: Image sensor: 1/2.8inch V20 +SC1135 sensor (V20+FH8532)
Video resolution: 1080P (1920*1080)
Signal system PAL/NTSC
Minimum illumination: Olux (When IR is on)
Video ouput: 1.0vp-p 75
Lens: 3.6mm
Number of infrared LEDS: 24
Day and night function: Built-in IR-CUT
Night vision distance: Up to 66ft/ 20m
Noise-signal ratio: 41db
Operating power: DC12V 10%
Consumption: <5W
Product Contents:
4 x AHD Camera
4 x 1080 4CH DVR

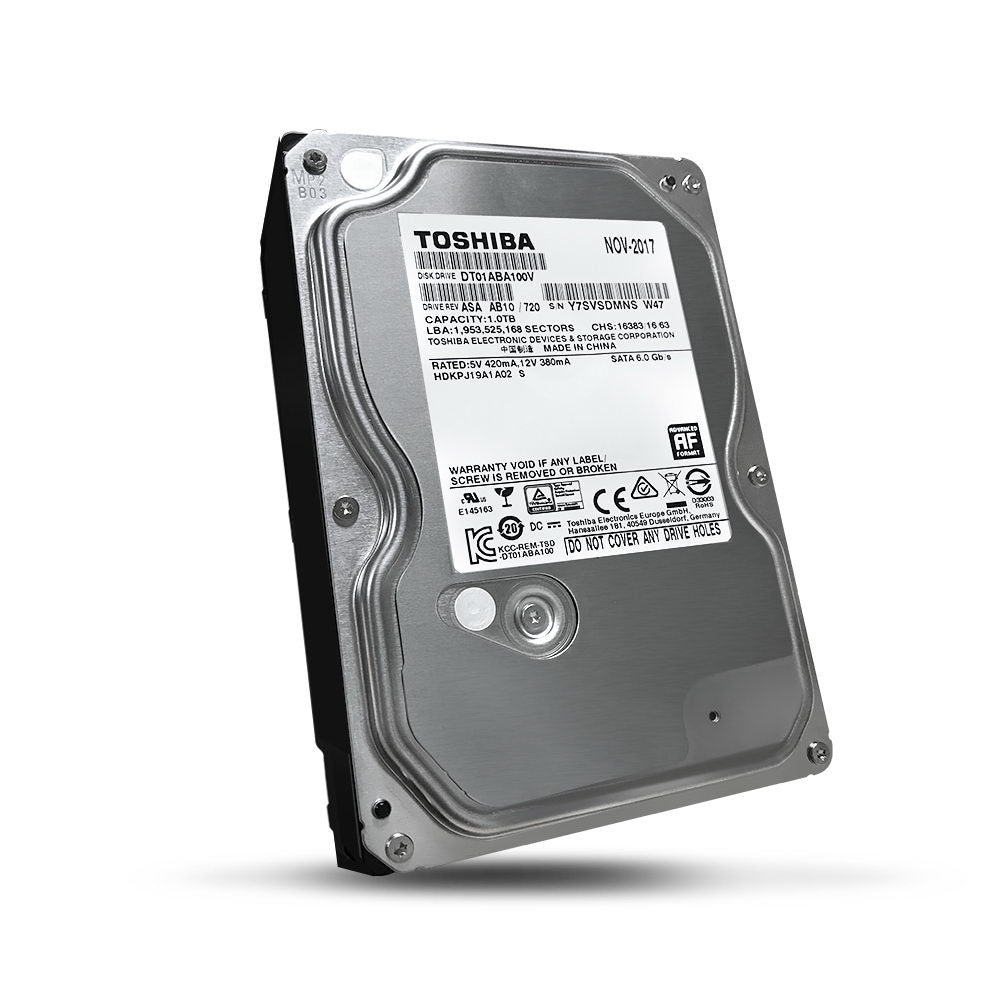

1 x 1TB Hard Drive
4 x 18.3m (60ft) 2-in-1 BNC Power Cable
1 x 1-4 Splitter Cable
2 x 12V/ 2A Power
1 x USB Mouse
1 x User Manual
Specifications & what’s included
| Specifications | Video |
|---|---|
| Codec | H.264 |
| Monitor quality | VGA, HDMI:HD |
| Preview ability | 4*1080N |
| Encode ability | 4*1080N@12fps |
| Decode ability | 4*1080N@12fps |
| Multi-mode input | analog: 4*1080N; 4*AHD-M; 4*AHD-L |
| Hybrid | 4*1080N (analog) + 4*960P (network) |
| Network only | 4*720P; 4*1080P; 8*720P;8*1080P;1*1080P |
| Motion detection | Each screen can be set to 192 (16*12) detection areas; multi-level security sensitivity can be set (limited local channel) |
| Record mode | Manual > Alarm > Motion detection > Timing Local playback: 8ch (local input mode) Seatrch mode: Search by time, calender, event, channel |
| Video input | 8ch BNC |
| Video output | 1ch VHA, 1ch HDMI |
| Loop vout | N/A |
| Audio I/O | 0/0 |
| Alarm I/O | 0/0 |
| Network interface | RJ45 10M/100M self-adaptation |
| PTZ control | 1*RS485, support kinds of PTZ protocols |
| USB | 2* USB 2.0 ports |
| HDD | 1*SATA ports (Max 6TB/per) |
| Video storage | HDD, network |
| Backup mode | Network, USB hard disk, USB burner, SATA burner |
| Power supply | 12V/2A |
| Camera | Image sensor: 1/2.8inch V20 +SC1135 sensor (V20+FH8532) |
| Video resolution | 1080P (1920*1080) |
| Minimum illumination | Olux (When IR is on) |
| Video ouput | 1.0vp-p 75 |
| Lens | 3.6mm |
| Number of infrared LEDS | 24 |
| Day and night function | Built-in IR-CUT |
| Night vision distance | Up to 66ft/ 20m |
| Noise-signal ratio | 41db |
| Operating power | DC12V 10% |
| Consumption | <5W |
