Protege
Protege 3HP Submersible Bore Water Pump Deep Well Irrigation Stainless Steel 240V
GST included. Delivery charged separately.
SKU: V219-PTGWPDEP3095
In stock
Need a delivery quote? Contact us
Need a delivery quote? Contact us
If no rate is available for your postcode, please contact us for a delivery price. Enter your postcode and suburb below to prepare your enquiry.
Delivery charges are confirmed at checkout.
Product details
The Protege submersible pump gives you the best flow rate of any bore water pump, producing an awesome 83L/min at 120 metres' depth. And if you need to go really deep, its 28 impellers will still be producing 17L/min at a dizzying depth of 195 metres. What's more, featuring housing in 304-grade stainless steel as well as inlet and outlets in brass, it's truly built to last. So, whether you need it for domestic or commercial applications, get pumped about your savings and order your Protege today!
In parts of Australia, it might be hard to believe that water is everywhere. But with your powerful 3HP Protege, you're equipped to find it. Whether the water is 5 or 195 metres below ground, the Protege will bring it up for you. Of course, if you're lucky enough to have surface water available, you can also mount your Protege horizontally.
Only requiring a borehole of 100mm, the Protege minimises the work needed to reach the water. And once you get there, you're set. Manufactured from 304-grade stainless steel and brass, your Protege is a durable workhorse that will keep you in flow for years to come.
- Best flow rate of any bore water pump

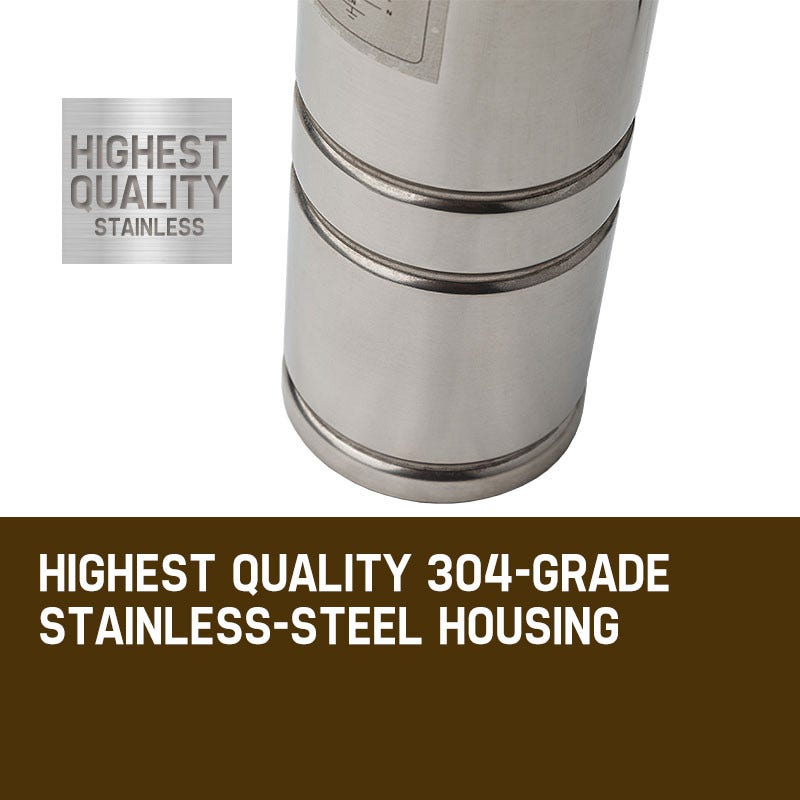

- Highest quality 304-grade stainless-steel housing
- 83L/min at a depth of 120 metres - 17L/min at 195 metres
- Brass inlet and outlets
- 28 impellers
- Can be mounted horizontally as well as vertically
- 210m max head
- Includes Pre-wired IP rated controller

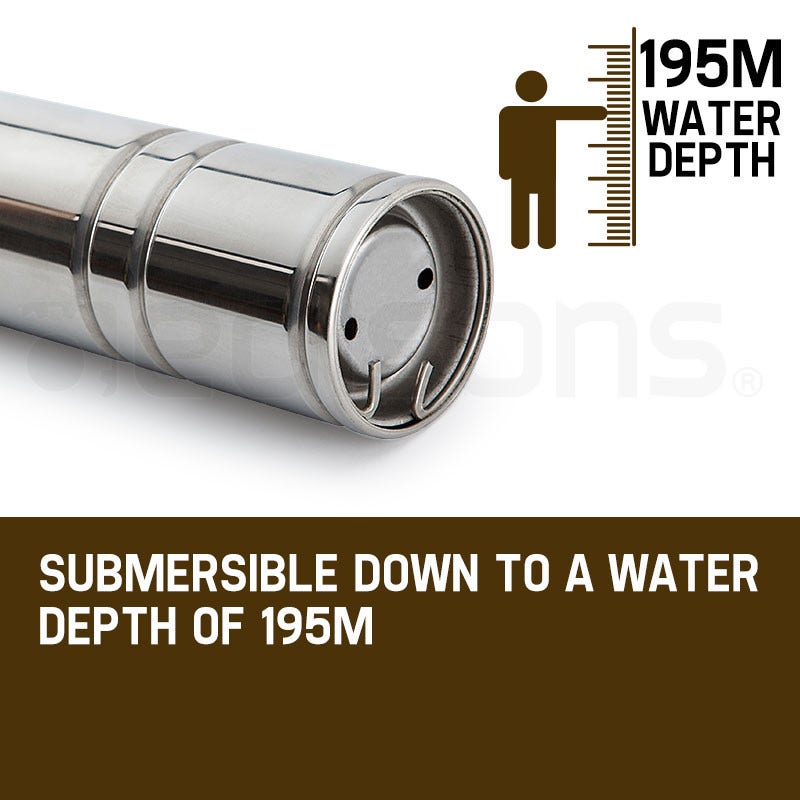

- Submersible down to a water depth of 195m
- 12-month Australian warranty
- Brand: Protege
- Model: BW66
- Motor: 3.0HP / 2.2KW
- Phase: Single
- Voltage: 240V / 50Hz 15A
- Brass Outlet: 1.25"
- Rev: 2850 rpm
- Water PH: 6.5 - 8.5
- Max Ambient Temp: 70 C
- Max Fluid Temp: 40 C
- Max Starts Per Hour: 30
- Overload Trip Time: <10sec
- Insulation Class: I
- Plug: 15 amp
- Protection Class: IP68
- Cable Length: 30m
-
Flow Rates:
- 17L/Min @ 195m
- 25L/Min @ 189m
- 33L/Min @ 180m
- 42L/Min @ 168m
- 50L/Min @ 150m
- 67L/Min @ 135m
- 83L/Min @ 120m
- Power Plug: Australian Standard
IN THE BOX
- 1 x Protege BW66 3HP Submersible Bore Water Pump
- 1 x Pre-wired IP rated controller
- 1 x User manual
SIZE WEIGHT
- Carton Dimensions (L x W x H): 176 x 12 x 19cm
- Carton Weight: 30kg
- Product Dimensions (W x L): 10cm X 148cm
- Product Weight: 28kg
Specifications & what’s included
| Brand | Protege |
|---|---|
| Model | BW66 |
| Motor | 3.0HP / 2.2KW |
| Phase | Single |
| Voltage | 240V / 50Hz 15A |
| Brass Outlet | 1.25" |
| Rev | 2850 rpm |
| Water PH | 6.5 - 8.5 |
| Max Ambient Temp | 70 C |
| Max Fluid Temp | 40 C |
| Max Starts Per Hour | 30 |
| Overload Trip Time | <10sec |
| Insulation Class | I |
| Plug | 15 amp |
| Protection Class | IP68 |
| Cable Length | 30m |
| Power Plug | Australian Standard |
| Carton Dimensions (L x W x H) | 176 x 12 x 19cm |
| Carton Weight | 30kg |
| Product Dimensions (W x L) | 10cm X 148cm |
| Product Weight | 28kg |
