Product details

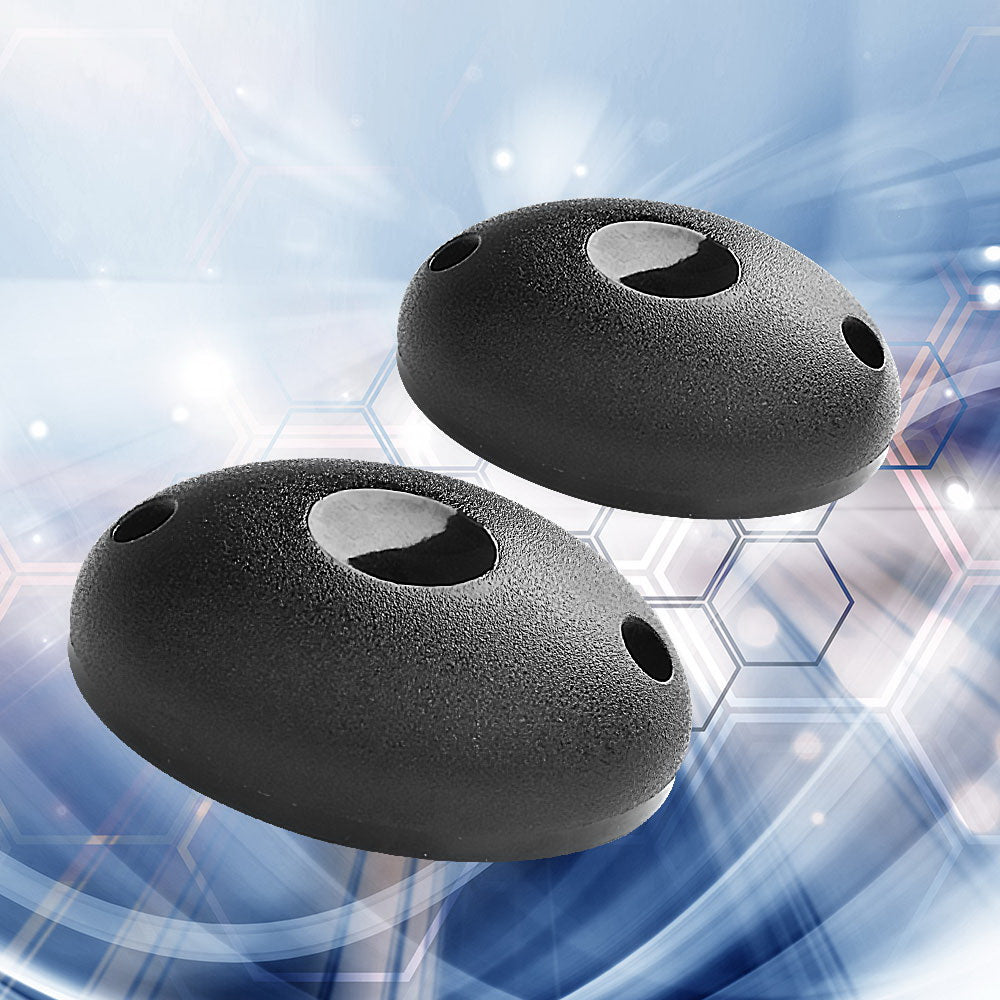

Swing/ Sliding Gate | Infrared Photocell Sensor | Up to 20M

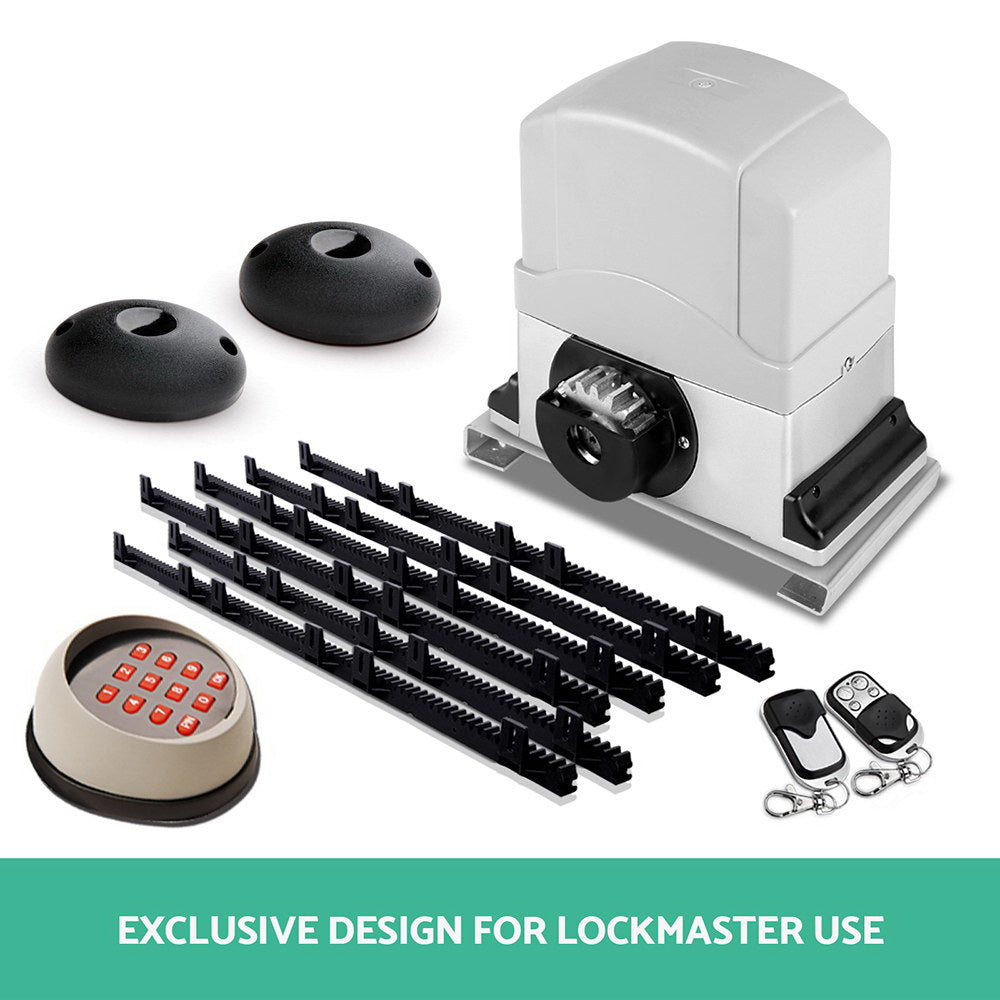

Exclusive for automated gate hardware, these infrared sensor are the ones to go for keeping your automated gate safe. Have the peace of mind knowing your family and vehicle will be protected from the occasional mishap that can happen sometimes. By placing these sensors between your automatic gate, you can ensure that your automatic gate will not be closing accidentally on a vehicle or more important, a person. KIND TIPS: Lockmaster products may come under a different brand name "UL Tech" but this is still the same product.
Features
Hard frosted photocell
Design for any rough weather
Infrared technology
Detection range up to 20M
Automatic beam for detection
12 months warranty
Specifications:
Technology: Infrared (Photocell)
Receiver range: ≤20m. Range can be reduced to 30% in bad weather conditions.
Frequency: 1.92Khz
Power supply: 12-24 DC/AC
Wave length: 940mm
Input: RX 15mA-TX 30mA, Angle: ＜± 10°
Working temperature: -20℃ - ＋70℃
Relay output: 1A max 30V
Product weight: 0.2kg
Product dimension: 7.5 x 4.9 x 3cm
Assembly Required: Yes
Please note: This item comes in 1 package
Package Content

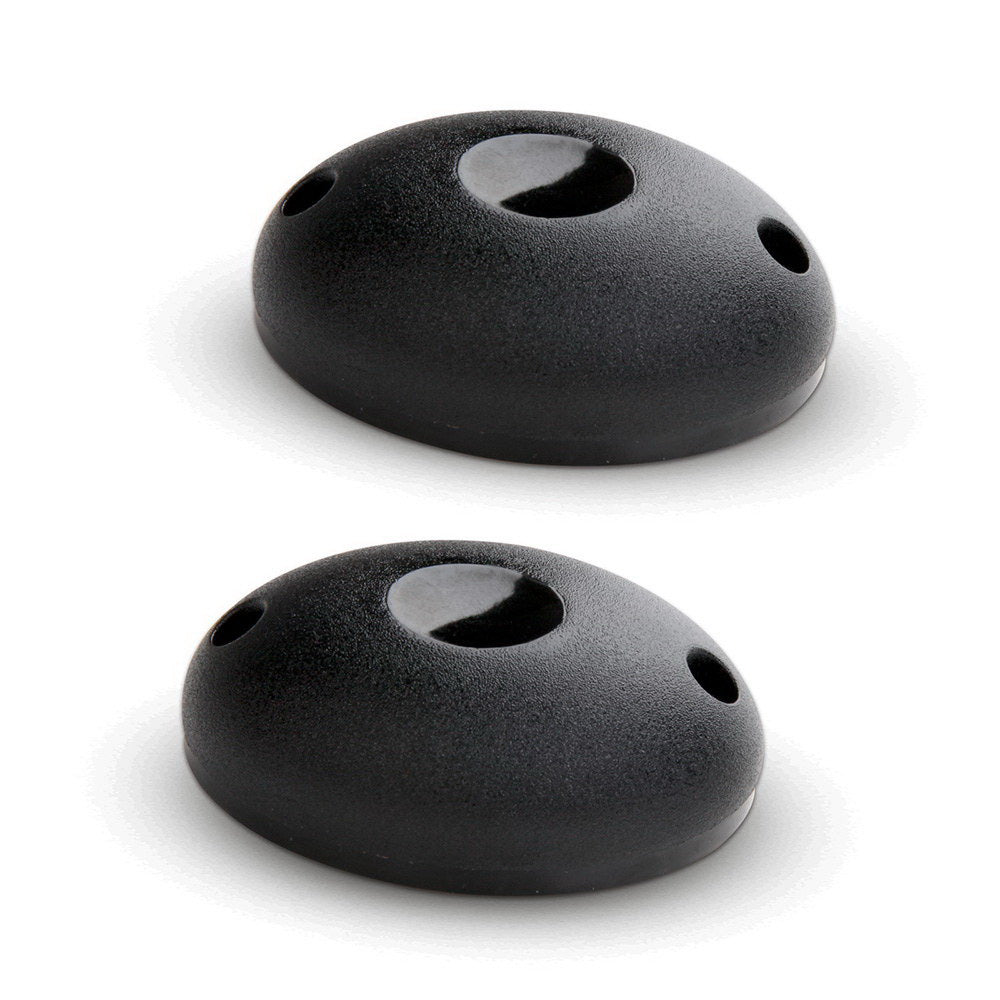

(1) Infrared photocell x2
(2) User Manual x1
This product comes with 1 year warranty
Specifications & what’s included
| Technology | Infrared (Photocell) |
|---|---|
| Receiver range | ≤20m. Range can be reduced to 30% in bad weather conditions. |
| Frequency | 1.92Khz |
| Power supply | 12-24 DC/AC |
| Wave length | 940mm |
| Input | RX 15mA-TX 30mA, Angle: ＜± 10° |
| Working temperature | -20℃ - ＋70℃ |
| Relay output | 1A max 30V |
| Product weight | 0.2kg |
| Product dimension | 7.5 x 4.9 x 3cm |
| Assembly Required | Yes |
| Please note | This item comes in 1 package |
